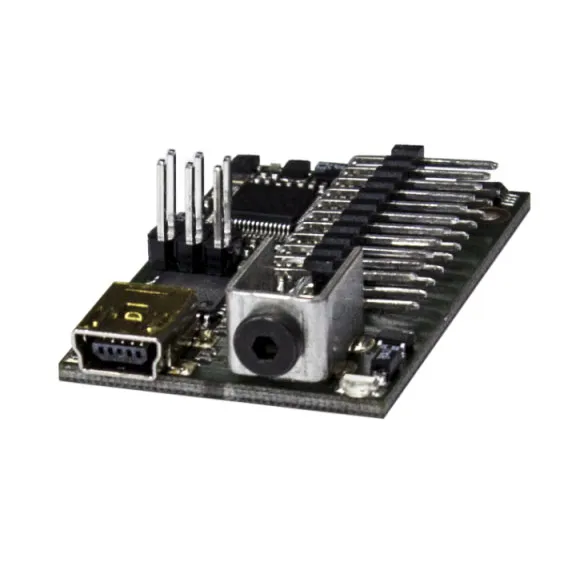

Helix HEC HD-Audio USB – DSP PRO MK3

Selle seadmega saate lisada oma DSP PRO MK3 võimendile HD USB-sisendi.

Tehnilised andmed

Note: The HD-AUDIO USB-INTERFACE has two operating modes.
Full Speed Mode (default): Highest compatibility with all Android, iOS, macOS and Windows devices. Supports sample rates up to 96 kHz / 32 Bit. No driver installation necessary.
High Speed Mode: Compatible with most of all Android ( Version 6), iOS, macOS and Windows devices. Supports sample rates up to 192 kHz / 32 Bit. An additional driver installation for Windows devices is necessary to use sampling rates higher than 96 kHz / 32 Bit.
Note: No connection wires included. A MiniUSB wire is needed for most configurations. If your device does not have the latest software version, you will also need a MicroUSB OTG cable for Android devices and a Camera Connection Kit or Lightning to USB cable for Apple devices.
Attention: The HD-AUDIO USB-INTERFACE does not support charging.
Technical data
Input sampling rate 32 kHz to 192 kHz / 16 Bit, 24 Bit or 32 Bit
Input format PCM
Supported device operating systems Windows, macOS, iOS, Android
Additional features Asynchronous USB connection
with own clock generators for
highest jitter immunity
Compatibility
HELIX DSP ULTRA
Scope of delivery
1 x HEC HD-AUDIO USB-INTERFACE module
1 x Device-specific side panel
1 x Allen screw
1 x Allen key
1 x Instruction manual
