HELIX CFMK165 VW.1 - VAG

HELIX CFMK165 VW.1 (FDM)

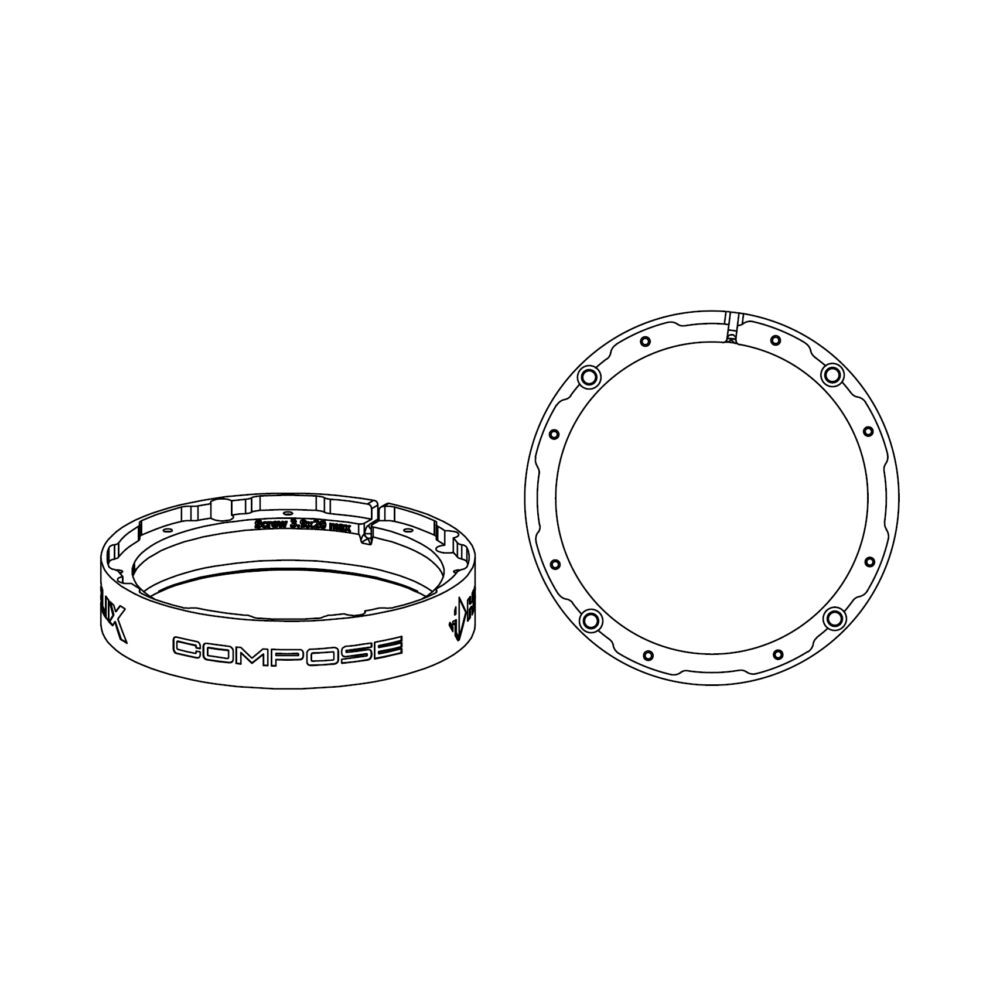

FlexMount on meie patenteeritud kinnitussüsteem, mis põhineb spetsiaalselt välja töötatud adapterrõngastel.
Need muudavad teie universaalse 6,5-tollise / 165 mm HELIX COMPOSE keskbassi koos FlexMount165 tehnoloogiaga autospetsiifiliseks kõlariks, võimaldades hõlpsat ja akustiliselt optimeeritud paigaldust sõiduki algsesse paigaldusasendisse.
Adapterid toodetakse ettevõttesiseselt, kasutades tipptasemel FDM 3D printimisprotsessi. Kasutatav spetsiaalne materjal on suurepäraselt kohandatud autotööstuses kasutamiseks ning seda iseloomustab eelkõige selle ülikõrge tugevus ja jäikus. Tänu spetsiaalsetele materjaliomadustele on meie FlexMount adapterid äärmiselt vastupidavad ilmastikumõjudele, UV-kiirgusele, õlidele ja määrdele. Lisaks katab see äärmiselt laia auto temperatuurivahemikku -40°C kuni üle +90°C, mis tagab vastupidavuse ja mõõtmete stabiilsuse ka kõige raskemates tingimustes.
Omadused
Sõidukispetsiifiline adapterrõngas 6,5” / 165 mm HELIX COMPOSE keskbassi professionaalseks ja akustiliselt optimeeritud integreerimiseks koos FlexMount165 tehnoloogiaga sõiduki algsesse paigalduskohta
Lihtne paigaldus ja turvaline fikseerimine tänu väändekindlale adapterrõngale
Kompleksne konstruktsioon tagab suure stabiilsuse, vastupidavuse ja optimeeritud akustilised omadused
Kaasa arvatud tihendid akustiliste lühiste ja niiskuse sissepääsu vältimiseks
Majasisene tootmine, kasutades tipptasemel FDM 3D-printimise protsessi
Valmistatud Saksamaal

Tehnilised andmed

Compatibility
Speaker:
Ci7 W165FM-S3
Ci3 W165FM-S3
Ci3 W165FM-S2
Ci3 K165.2FM-S3
Ci3 K165.2FM-S2
Ci3 C165.2FM-S3
Car models:
VW Amarok 01/2010 – 01/2016 w/Standard Soundsystem
Front: Ci7 W165FM-S3 , Ci3 W165FM-S3 , Ci3 W165FM-S2 , Ci3 C165.2FM-S3
Rear: Ci7 W165FM-S3 , Ci3 W165FM-S3 , Ci3 W165FM-S2 , Ci3 C165.2FM-S3
VW Arteon (3G) 07/2017 — w/Standard Soundsystem or Dynaudio
Front: Ci3 K165.2FM-S2 , Ci3 K165.2FM-S3 , Ci7 W165FM-S3 , Ci3 W165FM-S3 , Ci3 W165FM-S2 , Ci3 C165.2FM-S3
Rear: Ci7 W165FM-S3 , Ci3 W165FM-S3 , Ci3 W165FM-S2 , Ci3 C165.2FM-S3
VW Beetle (5C) 06/2011 — w/Standard Soundsystem or Fender Sound System
Front: Ci3 K165.2FM-S2 , Ci3 K165.2FM-S3 , Ci7 W165FM-S3 , Ci3 W165FM-S3 , Ci3 W165FM-S2 , Ci3 C165.2FM-S3
Rear: Ci7 W165FM-S3 , Ci3 W165FM-S3 , Ci3 W165FM-S2 , Ci3 C165.2FM-S3
VW Crafter II 01/2017 — w/Standard Soundsystem
Front: Ci3 K165.2FM-S2 , Ci3 K165.2FM-S3 , Ci7 W165FM-S3 , Ci3 W165FM-S3 , Ci3 W165FM-S2 , Ci3 C165.2FM-S3
VW EOS 1F 05/2006 – 06/2015 w/Standard Soundsystem or Dynaudio
Front: Ci3 K165.2FM-S2 , Ci3 K165.2FM-S3 , Ci7 W165FM-S3 , Ci3 W165FM-S3 , Ci3 W165FM-S2 , Ci3 C165.2FM-S3
VW Golf VI 1K 10/2008 – 11/2012 w/Standard Soundsystem or Dynaudio
Front: Ci3 K165.2FM-S2 , Ci3 K165.2FM-S3 , Ci7 W165FM-S3 , Ci3 W165FM-S3 , Ci3 W165FM-S2 , Ci3 C165.2FM-S3
VW Golf VII AU 08/2012 – 11/2019 w/Standard Soundsystem or Dynaudio
Front: Ci3 K165.2FM-S2 , Ci3 K165.2FM-S3 , Ci7 W165FM-S3 , Ci3 W165FM-S3 , Ci3 W165FM-S2 , Ci3 C165.2FM-S3
VW Golf VIII 10/2020 — w/Standard Soundsystem or Dynaudio
Front: Ci3 K165.2FM-S2 , Ci3 K165.2FM-S3 , Ci7 W165FM-S3 , Ci3 W165FM-S3 , Ci3 W165FM-S2 , Ci3 C165.2FM-S3
VW ID.3 11/2019 — w/Standard Soundsystem
Front: Ci3 K165.2FM-S2 , Ci3 K165.2FM-S3 , Ci7 W165FM-S3 , Ci3 W165FM-S3 , Ci3 W165FM-S2 , Ci3 C165.2FM-S3
VW ID.4 12/2020 — w/Standard Soundsystem
Front: Ci3 K165.2FM-S2 , Ci3 K165.2FM-S3 , Ci7 W165FM-S3 , Ci3 W165FM-S3 , Ci3 W165FM-S2 , Ci3 C165.2FM-S3
VW ID.Buzz 12/2022 — w/Standard Soundsystem
Front: Ci3 K165.2FM-S2 , Ci3 K165.2FM-S3 , Ci7 W165FM-S3 , Ci3 W165FM-S3 , Ci3 W165FM-S2 , Ci3 C165.2FM-S3
VW Passat B6 3C 03/2005 – 07/2010 w/Standard Soundsystem
Front: Ci7 W165FM-S3 , Ci3 W165FM-S3 , Ci3 W165FM-S2 , Ci3 C165.2FM-S3
Rear: Ci7 W165FM-S3 , Ci3 W165FM-S3 , Ci3 W165FM-S2 , Ci3 C165.2FM-S3
VW Passat B7 3C 10/2010 – 10/2014 w/Standard Soundsystem or Dynaudio
Front: Ci3 K165.2FM-S2 , Ci3 K165.2FM-S3 , Ci7 W165FM-S3 , Ci3 W165FM-S3 , Ci3 W165FM-S2 , Ci3 C165.2FM-S3
VW Polo IV 9N/9N3 09/2003 – 05/2009 w/Standard Soundsystem
Front: Ci7 W165FM-S3 , Ci3 W165FM-S3 , Ci3 W165FM-S2 , Ci3 C165.2FM-S3
VW Polo V 6R 06/2008 – 04/2014 w/Standard Soundsystem or Dynaudio
Front: Ci3 K165.2FM-S2 , Ci3 K165.2FM-S3 , Ci7 W165FM-S3 , Ci3 W165FM-S3 , Ci3 W165FM-S2 , Ci3 C165.2FM-S3
VW Polo VI 6C 04/2014 – 12/2017 w/Beats Audio Sound System
Front: Ci3 K165.2FM-S2 , Ci3 K165.2FM-S3 , Ci7 W165FM-S3 , Ci3 W165FM-S3 , Ci3 W165FM-S2 , Ci3 C165.2FM-S3
VW Polo VII AW 09/2017 — w/Standard Soundsystem or Beats Audio Sound System
Front: Ci3 K165.2FM-S2 , Ci3 K165.2FM-S3 , Ci7 W165FM-S3 , Ci3 W165FM-S3 , Ci3 W165FM-S2 , Ci3 C165.2FM-S3
VW Scirocco III 08/2008 – 04/2014 w/Standard Soundsystem
Front: Ci3 K165.2FM-S2 , Ci3 K165.2FM-S3 , Ci7 W165FM-S3 , Ci3 W165FM-S3 , Ci3 W165FM-S2 , Ci3 C165.2FM-S3
VW T-Roc A1 04/2020 — w/Standard Stereo or Beats Audio Sound System
Front: Ci3 K165.2FM-S2 , Ci3 K165.2FM-S3 , Ci7 W165FM-S3 , Ci3 W165FM-S3 , Ci3 W165FM-S2 , Ci3 C165.2FM-S3
VW Transporter T6.1 10/2019 — w/Standard Soundsystem
Front: Ci3 K165.2FM-S2 , Ci3 K165.2FM-S3 , Ci7 W165FM-S3 , Ci3 W165FM-S3 , Ci3 W165FM-S2 , Ci3 C165.2FM-S3
VW Tiguan AD1 01/2016 — w/Standard Soundsystem or Dynaudio
Front: Ci3 K165.2FM-S2 , Ci3 K165.2FM-S3 , Ci7 W165FM-S3 , Ci3 W165FM-S3 , Ci3 W165FM-S2 , Ci3 C165.2FM-S3
VW Touran 5T 05/2015 — w/Standard Soundsystem
Front: Ci3 K165.2FM-S2 , Ci3 K165.2FM-S3 , Ci7 W165FM-S3 , Ci3 W165FM-S3 , Ci3 W165FM-S2 , Ci3 C165.2FM-S3
VW UP! 04/2012 — w/Standard Soundsystem
Front: Ci3 K165.2FM-S2 , Ci3 K165.2FM-S3 , Ci7 W165FM-S3 , Ci3 W165FM-S3 , Ci3 W165FM-S2 , Ci3 C165.2FM-S3
MAN TGE (7C0) 04/2017 — w/Standard Soundsystem
Front: Ci3 K165.2FM-S3 , Ci7 W165FM-S3 , Ci3 W165FM-S3 , Ci3 W165FM-S2 , Ci3 C165.2FM-S3
Seat Altea XL (5P) 09/2006 – 01/2015 w/Standard Soundsystem
Front: Ci3 K165.2FM-S2 , Ci3 K165.2FM-S3 , Ci7 W165FM-S3 , Ci3 W165FM-S3 , Ci3 W165FM-S2 , Ci3 C165.2FM-S3
Rear: Front: Ci7 W165FM-S3 , Ci3 W165FM-S3 , Ci3 W165FM-S2 , Ci3 C165.2FM-S3
Seat Arona 10/2017 — w/Standard Soundsystem, Seat Sound System or Navigation
Front: Ci3 K165.2FM-S2 , Ci3 K165.2FM-S3 , Ci7 W165FM-S3 , Ci3 W165FM-S3 , Ci3 W165FM-S2 , Ci3 C165.2FM-S3
Rear: Ci7 W165FM-S3 , Ci3 W165FM-S3 , Ci3 W165FM-S2 , Ci3 C165.2FM-S3
Seat Ibiza (6F) 01/2017 — w/Standard Soundsystem, Seat Sound System or Navigation
Front: Ci3 K165.2FM-S2 , Ci3 K165.2FM-S3 , Ci7 W165FM-S3 , Ci3 W165FM-S3 , Ci3 W165FM-S2 , Ci3 C165.2FM-S3
Rear: Ci7 W165FM-S3 , Ci3 W165FM-S3 , Ci3 W165FM-S2 , Ci3 C165.2FM-S3
Seat Mii (AA) 04/2012 — w/Standard Soundsystem
Front: Ci3 K165.2FM-S2 , Ci3 K165.2FM-S3 , Ci7 W165FM-S3 , Ci3 W165FM-S3 , Ci3 W165FM-S2 , Ci3 C165.2FM-S3
Skoda Citigo (AA) 04/2012 — w/Standard Soundsystem
Front: Ci3 K165.2FM-S2 , Ci3 K165.2FM-S3 , Ci7 W165FM-S3 , Ci3 W165FM-S3 , Ci3 W165FM-S2 , Ci3 C165.2FM-S3
Skoda Fabia (5J) 01/2007 – 06/2014 w/Standard Soundsystem
Front: Ci3 K165.2FM-S2 , Ci3 K165.2FM-S3 , Ci7 W165FM-S3 , Ci3 W165FM-S3 , Ci3 W165FM-S2 , Ci3 C165.2FM-S3
Skoda Kodiaq 01/2017 — w/Standard Soundsystem or Canton Soundsystem
Rear: Ci7 W165FM-S3 , Ci3 W165FM-S3 , Ci3 W165FM-S2 , Ci3 C165.2FM-S3
Skoda Octavia I (1U) 03/1997 – 02/2004 w/Standard Soundsystem
Rear: Ci7 W165FM-S3 , Ci3 W165FM-S3 , Ci3 W165FM-S2 , Ci3 C165.2FM-S3
Skoda Octavia II (1Z) 02/2004 – 12/2012 w/Standard Soundsystem or Canton Soundsystem
Rear: Ci7 W165FM-S3 , Ci3 W165FM-S3 , Ci3 W165FM-S2 , Ci3 C165.2FM-S3
Skoda Octavia III (5E) 01/2013 – 12/2019 w/Standard Soundsystem or Canton Soundsystem
Front: Ci3 K165.2FM-S2 , Ci3 K165.2FM-S3 , Ci7 W165FM-S3 , Ci3 W165FM-S3 , Ci3 W165FM-S2 , Ci3 C165.2FM-S3
Rear: Ci7 W165FM-S3 , Ci3 W165FM-S3 , Ci3 W165FM-S2 , Ci3 C165.2FM-S3
Skoda Octavia IV (NX) 01/2020 — w/Standard Soundsystem or Canton Soundsystem
Front: Ci3 K165.2FM-S2 , Ci3 K165.2FM-S3 , Ci7 W165FM-S3 , Ci3 W165FM-S3 , Ci3 W165FM-S2 , Ci3 C165.2FM-S3
Rear: Ci7 W165FM-S3 , Ci3 W165FM-S3 , Ci3 W165FM-S2 , Ci3 C165.2FM-S3
Skoda Rapid (NH) 10/2011 — w/Standard Soundsystem or Canton Soundsystem
Front: Ci3 K165.2FM-S2 , Ci3 K165.2FM-S3 , Ci7 W165FM-S3 , Ci3 W165FM-S3 , Ci3 W165FM-S2 , Ci3 C165.2FM-S3
Rear: Ci7 W165FM-S3 , Ci3 W165FM-S3 , Ci3 W165FM-S2 , Ci3 C165.2FM-S3
Skoda Roomster (5J) 06/2006 – 04/2015 w/Standard Soundsystem
Front: Ci3 K165.2FM-S2 , Ci3 K165.2FM-S3 , Ci7 W165FM-S3 , Ci3 W165FM-S3 , Ci3 W165FM-S2 , Ci3 C165.2FM-S3
Rear: Ci7 W165FM-S3 , Ci3 W165FM-S3 , Ci3 W165FM-S2 , Ci3 C165.2FM-S3
Scope of delivery
2 x FlexMount165 adaptor ring
2 x Speaker gasket
1 x Mounting material
