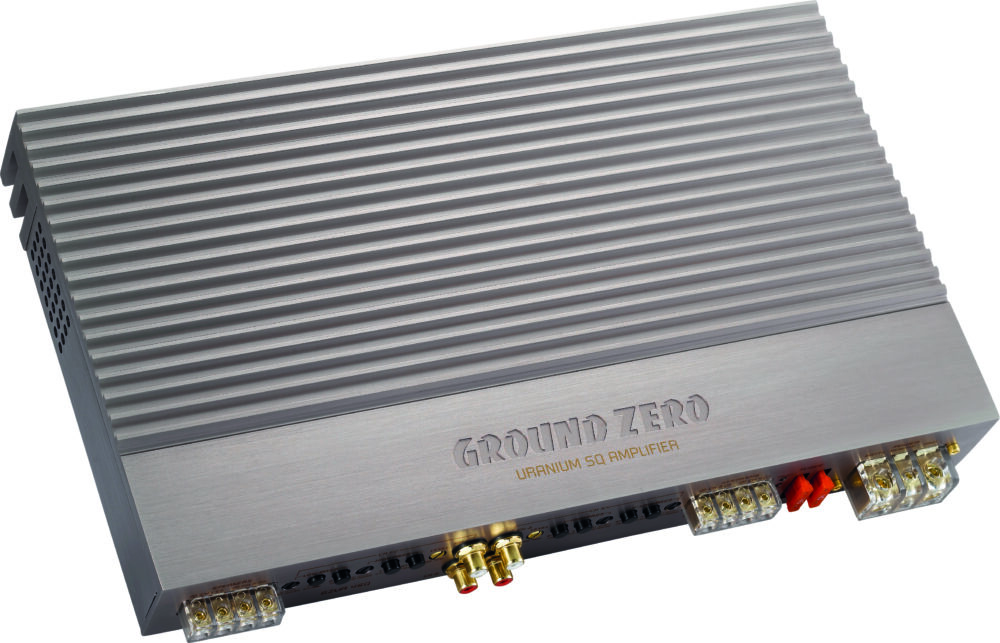

Ground Zero GZUA 4SQ

Ground Zero Uranium 4-kanaliline tippklassi A/B SQ võimendi. 2 oomi stabiilne (stereotöö) Reguleeritav BIAS seadistus Reguleeritavad kõrg- ja madalpääsfiltrid laia ribalaiusega Bandpassfunktsioon koos aktiveeritud kõrg- ja madalpääsfiltriga Reguleeritav sisendi tundlikkus Toite viivitus Temperatuuri / lühise / ülekoormuskaitse

Tehnilised andmed

4-channel high-end class AB amplifier
High-performance 4-channel SQ amplifier
Output power:
– 4x 115 W RMS @ 4 ohms
– 4x 185 W RMS @ 2 ohms
– 2x 440 W max. @ 4 ohms (bridged)
2 ohms stable (stereo operation)
THD+N 0.01%
Frequency Response 10 Hz – 70kHz ( -3dB )
LPF: 20 Hz – 400 Hz / 200 – 4000 Hz ( x10 )
HPF: 20 Hz – 400 Hz / 200 – 4000 Hz ( x10 )
Band Pass Filter 20 Hz – 4000Hz ( x10 )
SNR:  110dB
Damping Factor: 800
Adjustable BIAS setting
Adjustable high and low pass filters with wide bandwidth
Bandpass function with activated high and low pass filter
Adjustable input sensitivity
Power on delay
Temperature / short circuit / overload protection
Dimensions:
209 x 48 x360 mm
